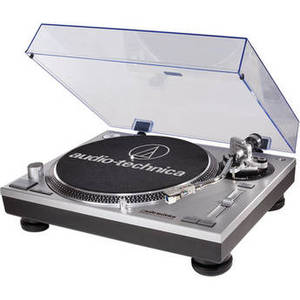

AT-LP120USB Direct Drive Professional DJ Turntable with USB Output (Silver)


From Audio-Technica Consumer | Model #: AUATLP120USB
See more in Musical Instruments



AT-LP120USB Direct Drive Professional DJ Turntable with USB Output (Silver)

Product Description

The silver Audio-Technica AT-LP120USB Direct Drive Professional DJ Turntable delivers a host of features that are suitable for use in nightclub DJ booths and mobile and home DJ applications. The AT-LP120USB features a rugged cast aluminum construction with line and phono audio outputs. A USB output will interface with Mac or Windows computers and give DJs the ability to digitize their vinyl collections. Audacity recording software is also included for Mac and Windows. Additional features include 33 1/3, 45 and 78 rpm speeds, +/- 20% and 10% quartz pitch control, and reverse mode.
Cartridge Specifications
Frequency Response 20 Hz to 20 kHz
Channel Separation > 20 dB at 1 kHz
Tracking Force Vertical Tracking Force: 1.5 to 2.5 g
Stylus Stylus Construction: Bonded round shank
Stylus Shape: 0.02 x 0.03" / 0.40 x 0.70 mm elliptical
Stylus Cantilever: Aluminum
Output 3.5 mV at 1 kHz, 5 cm/sec
Channel Balance 2.0 dB
Mount 0.5" / 12.7 mm
Replacement Stylus ATN95E
Turntable
Type 3-speed, fully manual
Output Connectors Phono RCA
Line RCA
USB
Motor Direct Drive DC Motor
Speeds 33-1/3, 45, 78 rpm
Brake Electronic Brake
Pitch Control Range +/-10% or +/-20%
Wow and Flutter < 0.2% WRMS (33 rpm)
Signal-to-Noise Ratio > 50 dB
Turntable Platter Die-cast aluminum
Torque Starting Torque: > 1.6 kgf.cm
Output Level Phono Pre-Amp: 2.5 mV nominal at 1 kHz, 5 cm/sec
Line Pre-Amp: 150 mV nominal at 1 kHz, 5 cm/sec
Gain Phono Pre-Amp Gain: 36 dB nominal, RIAA equalized
USB Functions A/D, D/A: 16-bit, 44.1 kHz or 48 kHz USB selectable
Computer Interface: USB 1.1 Compliant Windows XP, Vista or MAC OSX
Power Power supply Requirements: 115/230 VAC, 60/50 Hz
Power Consumption: 11 W
Dimensions (WxDxH) 17.72 x 13.86 x 6.10" (450 x 352 x 157 mm)
Weight 23.5 lb (10.7 kg)
