SLX4 Diversity UHF Wireless Microphone Receiver (G4: 470 to 494 MHz)


From Shure | Model #: SHSLX4G4
See more in Home Theater



SLX4 Diversity UHF Wireless Microphone Receiver (G4: 470 to 494 MHz)

Product Description

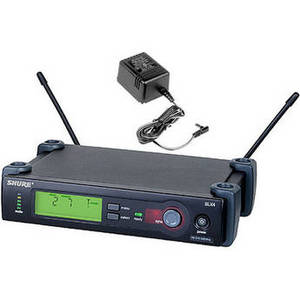

The Shure SLX4 is a UHF wireless microphones receiver designed for use with the Shure SLX wireless microphone series. The diversity design allows dual receiver circuits and antennas to compete for the strongest possible reception. XLR microphone level, and 1/4" phone line level outputs are featured. A comprehensive LCD display provides Frequency, Group, and Channel information, as well as transmitter battery status, audio level, and more.
Type of Receiver UHF Diversity Half-Rack Mountable
RF Carrier Frequency Range G4: 470 to 494 MHz
Approx. Working Range 300' (100 m)
Overall Frequency Response 45 Hz to 15 kHz +/-2 dB
Sensitivity -105 dBm for 12 dB SINAD, typical
Dynamic Range > 100 dB A-weighted
# Of Channels 960 operating frequencies across a 24 MHz bandwidth
Configuration Impedance balanced
Type of Output(s) XLR connection: 200 Ohms
1/4" connection: 1 kOhm
Image Rejection > 70 dB, typical
Headphone Monitoring No
Power Requirements 12-18 VDC at 150 mA, supplied by external power supply
Display Backlit LCD
Mounting Options Short and long rackmount hardware included
Antenna Type Dual 1/4 wave BNC type
Dimensions 1.65 x 7.76 x 5.26" (42 x 197 x 134 mm)
Weight 1.8 lb (816 g)
