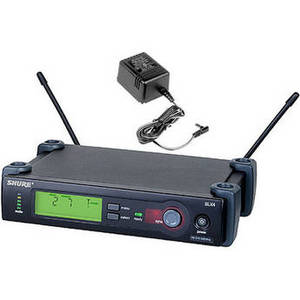

SLX4L Wireless Receiver with Antennas and Power Supply (494-518MHz)


From Shure | Model #: SHSLX4LG5
See more in Home Theater



SLX4L Wireless Receiver with Antennas and Power Supply (494-518MHz)

Product Description

The Shure SLX4L is a UHF wireless microphones receiver, designed for use with the Shure SLX wireless microphone series. The diversity design allows dual receiver circuits and antennas to compete for the strongest possible reception. XLR microphone level, and 1/4" phone line level outputs are featured. A comprehensive LCD display provides Frequency, Group and Channel information as well as transmitter battery status, audio level and more.
Type of Receiver UHF Diversity Half-Rack Mountable
RF Carrier Frequency Range 494-518MHz
Approx. Working Range 300' (100 m)
Overall Frequency Response 45Hz - 15KHz ±2dB
Signal-to-Noise Ratio > 100dB A-weighted
# Of Channels 960 operating frequencies across a 24MHz
Type of Output(s) XLR connection: 200 Ω
1/4" connection: 1kΩ
Headphone Monitoring No
Power Requirements 12-18 VDC at 150mA, supplied by external power supply
Display Backlit LCD
Mounting Options Short and Long Rack-Mount Hardware Included
Antenna Type Dual 1/4 wave BNC type
Dimensions 1.65 x 7.76 x 5.26" (42 x 197 x 134mm)
Weight 28.78 oz (816g)
