Encore Duet Dual Receiver VHF Wireless Guitar System


From Nady | Model #: NAEDUETGTFE
See more in Musical Instruments



Encore Duet Dual Receiver VHF Wireless Guitar System

Product Description

The Encore Duet Dual Receiver VHF Wireless Guitar System by Nady brings you a complete wireless solution for up to two guitars or other instruments and is a cost-effective, cable-free system for houses-of-worship, auditoriums, presentations, small performances and more.

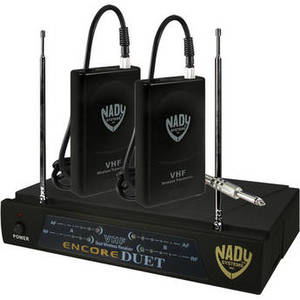

The Encore Duet allows for individual or simultaneous wireless operation over two VHF frequencies. The system includes a rugged receiver with dual antennas, two WGT Instrument Bodypack transmitters and 1/4" phone and XLR outputs for connection to PA systems. Each transmitter operates up to 15 hours on a single 9V battery.
System
Type of System Dual Channel VHF
RF Carrier Frequency Range 2 channels between 169-216MHz
Approx. Working Range Up to 250 ft. typical (depending on site conditions)
Up to 500+ feet optimum line-of-sight
Overall Frequency Response 25Hz - 20kHz, +/-3dB
Total Harmonic Distortion (THD) < 0.3 %
Frequency Stability +/- 0.005%
crystal controlled
Modulation FM (F3E)
+/-20kHz max
Receiver
Type of Outputs Dual balanced XLR and unbalanced adjustable 1/4" audio out jacks (Ch A & B mixed)
2.1 mm barrel-type DC input jack
Power Requirements 12V @ 400mA, nominal
AC/DC adapter supplied
LED Indicators Power ON, Dual 5-LED RF and AF level displays(Ch A/B)
Antenna Type 11.2" (28.5 cm), dual telescopic
Dimensions 1.75 x 7.5 x 8.1" (4.4 x 19 x 20.7 cm)
Weight 1.6 lb (0.73 kg)
Transmitter
Type of Transmitter WGT instrument bodypack
Polar Pattern Omnidirectional
Battery Type/Approx. Life Battery: 9V Alkaline
Battery Life: Up to 15 hours
Mute Switch Off/On Switch
Display Low-battery LED
Dimensions 4.1 x 2.4 x 0.8" (10.4 x 6.1 x 2.0 cm)
Weight 3.6 oz (101 g)
